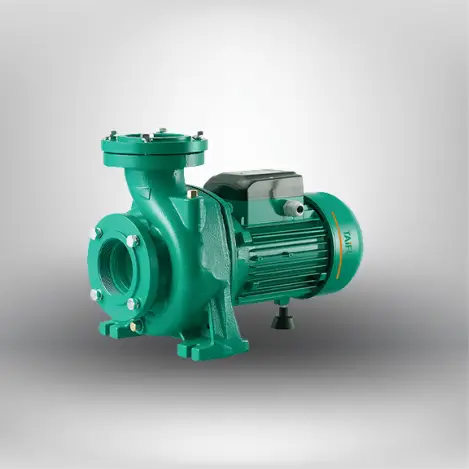

The Taifu TNF150 Centrifugal Pump is a high-capacity heavy-duty water pump engineered for industrial, agricultural, and flood control use. Powered by a robust 4.0 kW (5.5 HP) motor, it delivers up to 1800 L/min flow and 20 m head for maximum water output. Its 4″×4″ wide ports enable fast, efficient water transfer for large-scale systems. Constructed with a durable cast-iron housing and copper-wound motor to ensure long-lasting reliability and performance.
| Model | Taifu TNF150 Centrifugal Pump |
|---|---|
| Power Output | 4.0 kW (5.5 HP) |
| Voltage | 220 – 240 V / 50 Hz (Single Phase) |
| Inlet / Outlet | 4″ × 4″ |
| Maximum Suction Lift | 7 m |
| Maximum Flow Rate | 1800 L/min (108 m³/h) |
| Maximum Head | 20 m |
| Pump Type | Centrifugal Flood & Irrigation Pump |
| Impeller Material | Cast Iron / Aluminum Alloy |
| Pump Body Material | Heavy-Duty Cast Iron |
| Motor Winding | 100 % Copper |
| Cooling System | External Fan Cooling |
| Protection Rating | IP44 |
| Insulation Class | Class B/F |
| Motor Speed | 2850 rpm |
| Noise Level | ≤ 75 dB |
| Applications | Industrial water transfer, Flood control, Agricultural irrigation, Construction dewatering |
| Country of Origin | China |
