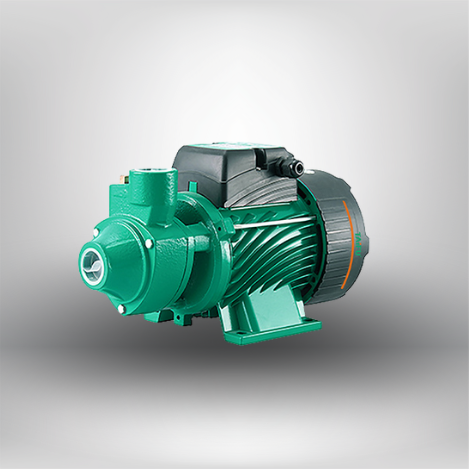

The Taifu QB90 Peripheral Pump is a powerful high-pressure water pump designed for multi-story buildings and long-distance water delivery. With a 0.9 kW (1.2 HP) copper-wound motor, it provides up to 75 m head and 45 L/min flow for demanding water systems. Its durable cast-iron body and brass impeller ensure long-term reliability and silent operation. Perfect for domestic water boosting, irrigation, and industrial water transfer applications.
| Model | Taifu QB90 Peripheral Pump |
|---|---|
| Power | 0.9 kW (1.2 HP) |
| Voltage | 220 – 240 V / 50 Hz (Single Phase) |
| Inlet / Outlet | 1 ″ × 1 ″ |
| Maximum Suction Lift | 8 m |
| Maximum Flow Rate | 45 L/min (2.7 m³/h) |
| Maximum Head | 75 m |
| Flow at 30 L/min | ≈ 30 m Head |
| Pump Type | Peripheral (Vortex) Clean Water Pump |
| Impeller Material | Brass |
| Pump Body Material | Cast Iron |
| Motor Winding | 100% Copper |
| Cooling System | External Fan Cooling |
| Insulation Class | Class B/F |
| Protection Rating | IP44 |
| Motor Speed | 2850 rpm |
| Noise Level | ≤ 70 dB |
| Applications | High-rise water supply, Pressure boosting, Irrigation, Industrial transfer |
| Country of Origin | China |
