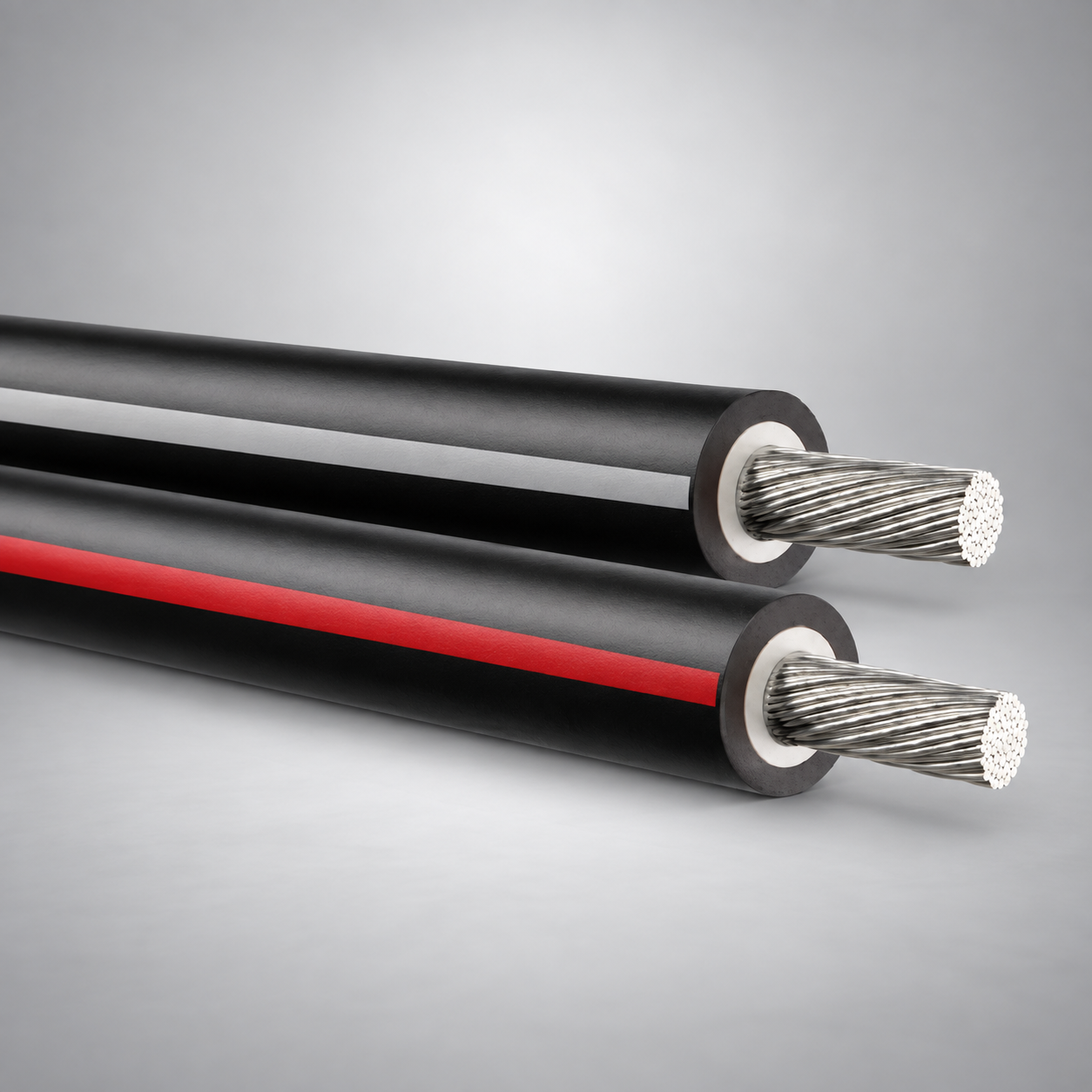

BETAflam® Solar 125 RV+ Flex 6mm² Red Solar Cable – 25m Roll is a 1500V DC photovoltaic cable for connecting solar panels and inverters. It features halogen-free, flame-retardant XLPO construction, UV, ozone and hydrolysis resistance, high temperature performance, good cold flexibility and EN 50618 approval for reliable solar PV installations.
| Specification | Details |
|---|---|
| Product | BETAflam® Solar 125 RV+ Flex |
| Cable Type | Photovoltaic Power Cable |
| Cable Size | 6mm² |
| Roll Length | 25 Metres |
| Colour | Red |
| Rated Voltage | U0 = 1500V DC |
| Maximum Permitted Voltage | U0 = 1800V DC |
| Test Voltage | 6.5 kV AC, 50 Hz |
| Insulation | XLPO, Flame-Retardant, Halogen-Free |
| Jacket | XLPO, Flame-Retardant, Halogen-Free |
| Cross-Linking | Electron-Beam Cross-Linked |
| UV Resistance | Yes |
| Ozone Resistance | Yes |
| Hydrolysis Resistance | Yes |
| Operating Temperature | –50°C to +120°C |
| Ambient Temperature | –50°C to +90°C |
| Maximum Short-Circuit Temperature | +280°C for 5 seconds |
| Bending Radius – Fixed Installation | >4 × cable diameter |
| Bending Radius – Occasionally Moved | >5 × cable diameter |
| Approval | EN 50618 |
| Cable Standard | H1Z2Z2-K |
| Fire Performance | IEC 60332-1 |
| Smoke Emission | IEC 61034 / EN 61034-2 |
| Low Fire Load | DIN 51900 |
| CPR Classification | Dca-s2, d2, a2 |
| RoHS | Compliant |
