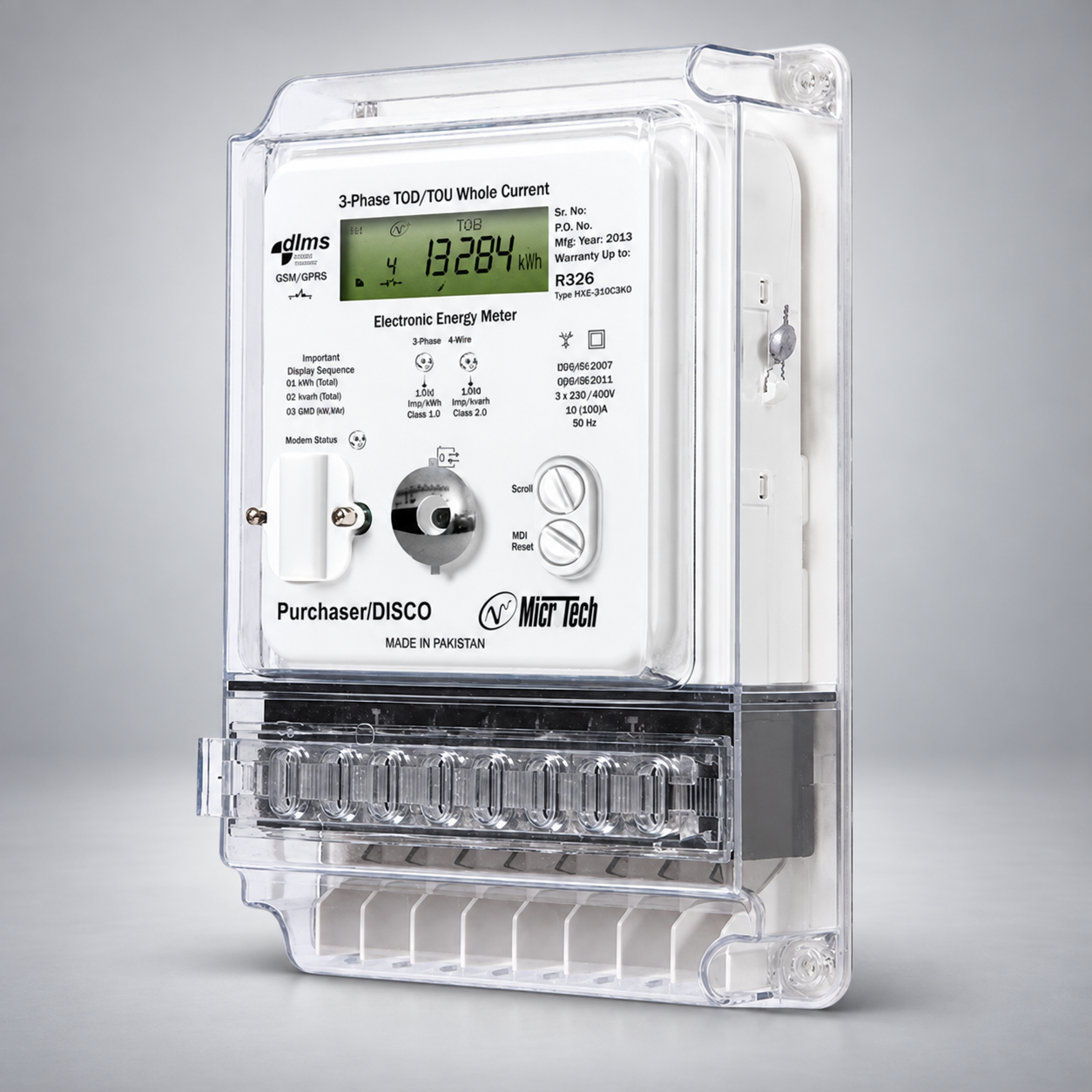

MicroTech R326_DTGC3K3 Static 3-Phase Whole Current Energy Meter for residential and commercial connections, featuring 3-phase 4-wire direct connection, 10/100A current rating, DLMS/COSEM communication, TOD/TOU tariffs, remote disconnect/reconnect, load profiling and anti-tampering functions. Compliant with IEC 62053-21 and IEC 62053-23.
| Specification | Details |
|---|---|
| Brand | MicroTech Industries |
| Model | R326_DTGC3K3 |
| Product Type | Static 3-Phase Whole Current Energy Meter |
| Connection | 3-Phase, 4-Wire |
| Connection Configuration | Direct Connected / Whole Current |
| Metrology | Four Quadrants |
| Operating Voltage | 3 × 230/400V |
| Basic / Maximum Current | 10 / 100A |
| Reference Frequency | 50Hz |
| Active Energy Accuracy | Class 1.0 |
| Reactive Energy Accuracy | Class 2.0 |
| Display | LCD |
| Display Resolution | 7 Digits |
| Reference Standards | IEC 62053-21, IEC 62053-23 |
| Communication Protocols | DLMS/COSEM, IEC 62056-21 |
| Data Storage | Non-Volatile EEPROM |
| Relative Humidity | Up to 95% |
| Specified Operating Temperature | -25°C to 60°C |
| Extreme Operating Temperature | -25°C to 80°C |
| Storage/Transportation Temperature | -25°C to 80°C |
| Active & Reactive Meter Constant | 1250 imp./kWh |
| Starting Current | 40mA |
| Voltage Circuit Consumption | <2W, 10VA |
| Current Circuit Consumption | <4VA at basic current |
| Power Frequency Dielectric Strength | 4kV for 1 minute |
| Impulse Voltage | 8kV, 1.2/50 µs |
| Short-Time Overcurrent | 3000A for 10ms |
| Insulation Resistance | >5MΩ |
| Minimum Creepage Distance | 20mm |
| DC Magnetic Field | 1000 Amp/Turns |
| AC Magnetic Field | 400 Amp/Turns |
