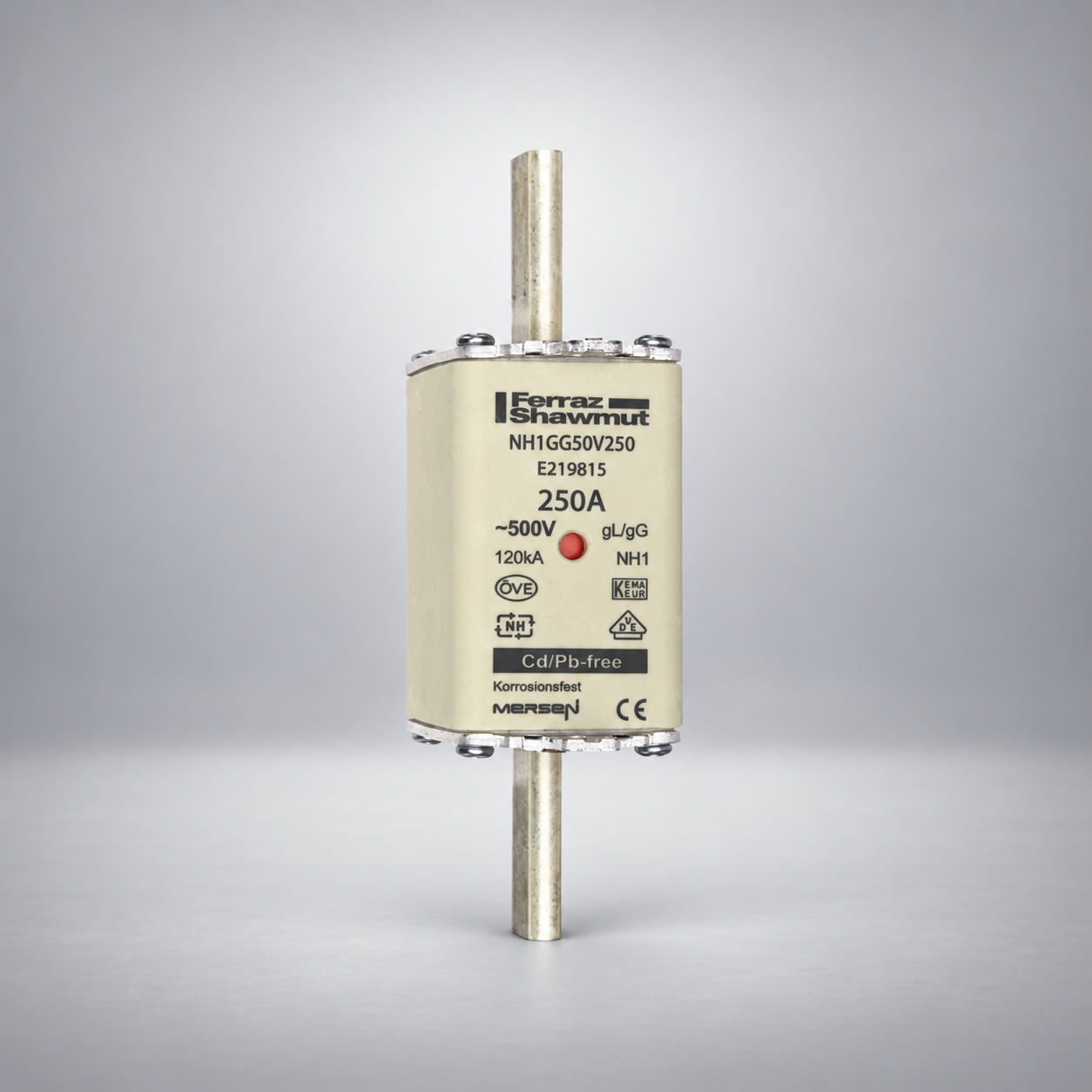

Mersen NH Size 01 250A gG Fuse-Link for cable, electrical equipment and industrial protection. Rated 500V AC / 250V DC, with 120kA AC and 80kA DC breaking capacity, ceramic body and silver-plated copper blade contacts.
| Specification | Details |
|---|---|
| Brand | Mersen |
| Product Type | NH Fuse-Link |
| NH Size | Size 01 |
| Rated Current | 250A |
| Characteristic | gG |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 250V DC |
| Ampere Range | 2–630A |
| Standard Sizes | 000 to 3 |
| AC Breaking Capacity (IEC) | 120kA |
| DC Breaking Capacity (IEC) | 80kA |
| Body Material | Ceramic |
| Contact Material | Copper, Silver-Plated |
| Contact Type | Blade Contact |
