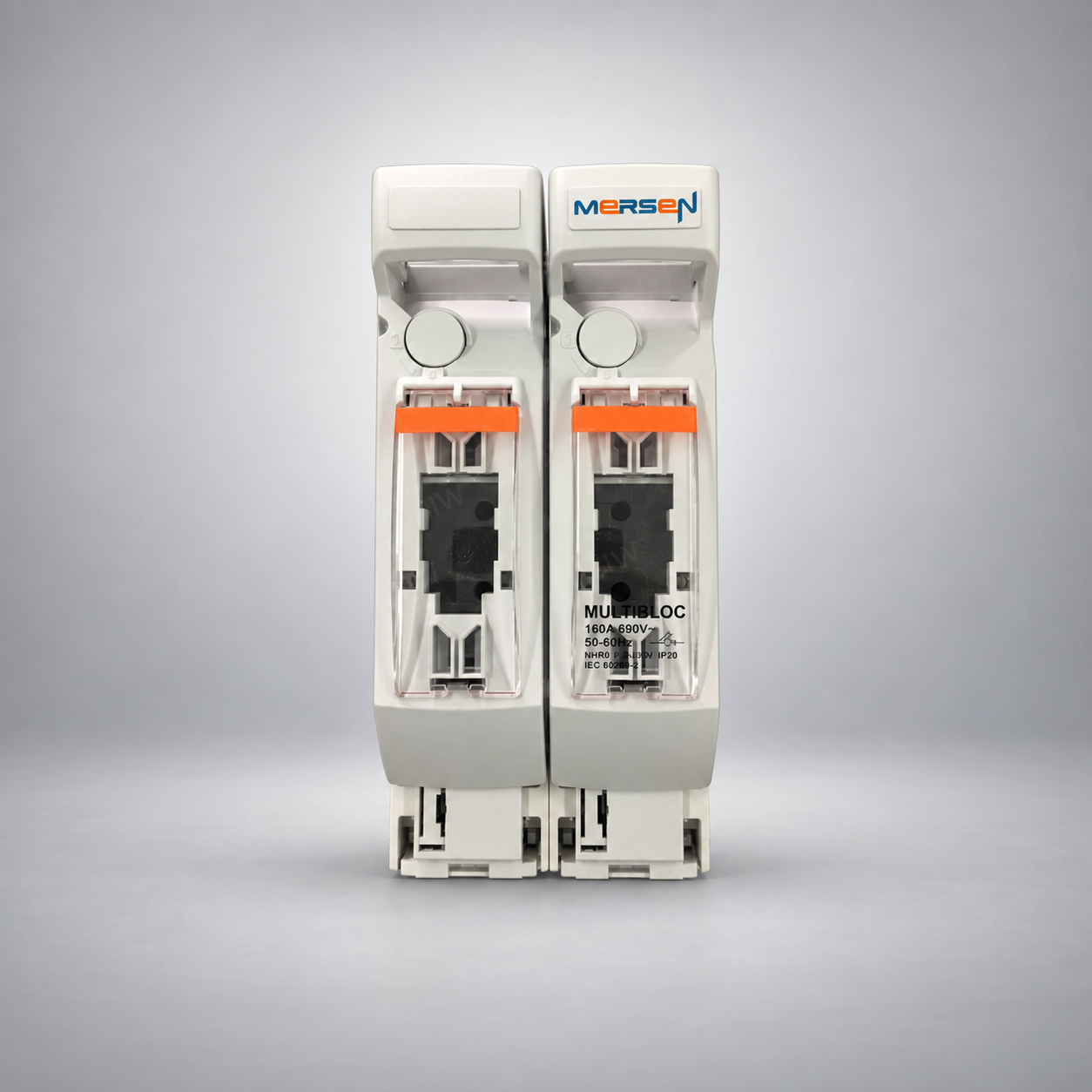

Mersen Battery Disconnect 2P-160A Without Fuses – NH Size 00 Fuse Switch-Disconnector

Mersen 2P-160A Battery Disconnect is a 2-pole fuse switch-disconnector supplied without fuses and designed for NH Size 00 blade-contact fuse-links. It supports safe disconnection, panel mounting, a lockable cover, flexible connections and conductor connections up to 95 mm² with suitable terminal extensions.

Categories ALL PRODUCTS, Protection Device, SOLAR EQUIPMENT SUPPLIER Tags Fuse Switch-Disconnector, Protection Device Brand: Chinese

Specification	Details
Brand	Mersen
Product Type	Fuse Switch-Disconnector / Battery Disconnect
Configuration	2P
Rated Current	160A
Fuses	Not Included
Compatible Fuse-Link	NH Size 00 Blade Contact
Maximum Overcurrent Disconnection	Up to 8× Rated Current
Mounting	Direct Panel Mounting
Mounting Method	Screws
Cover	Lockable
Measuring Holes	Yes
Circuit Identification	Label Provided
Bottom Connection	Possible
Terminal Extensions	Available
Maximum Conductor Cross-Section with Extensions	Up to 95 mm²
Installation	Side-by-Side or Flat
Connecting Sets	Variable
