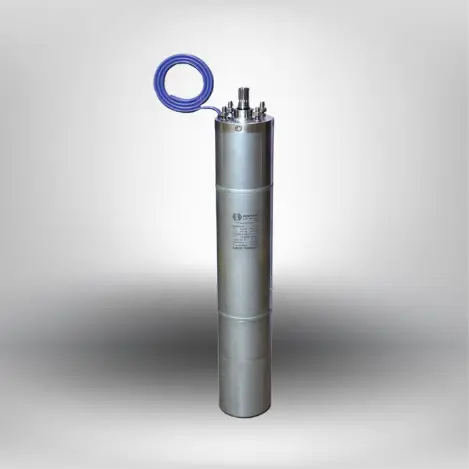

Komax Stainless Steel Water-Cooled Submersible Motors are engineered for high performance, durability, and efficiency in deep-well and industrial pumping. Built with precision stainless steel (AISI 304/316), these motors offer exceptional corrosion resistance and long service life. Their water-cooled design ensures smooth, reliable operation even under continuous heavy-duty conditions. Ideal for agriculture, municipal supply, construction, and dewatering applications requiring consistent water flow and low maintenance.
| Model | KOMAX Stainless Steel Water-Cooled Submersible Motors |
|---|---|
| Motor Type | Water-Cooled Submersible Electric Motor |
| Motor Series | KPS6 & KPS8 Series |
| Motor Pole / Frequency | 2-Pole / 50 Hz |
| Construction Material | Stainless Steel AISI 304 / 316 |
| Cooling System | Water-Cooled, Hermetically Sealed |
| Power Range | Up to 93 kW |
| Speed | 2850 RPM (Synchronous) |
| Operating Voltage | 380 – 415 V / 3 Phase / 50 Hz |
| Insulation Class | Class F or Higher |
| Protection Grade | IP 68 |
| Mounting Standard | NEMA 4″, 6″, 8″ Coupling |
| Lubrication | Water Lubricated Bearings |
| Direction of Rotation | CCW (Facing Delivery Side) |
| Ambient Water Temperature | −5 °C to +50 °C |
| Maximum Sand Content | 55 g/m³ |
| Duty | Continuous (S1) |
| Applications | Deep-Well Pumping, Agriculture Irrigation, Industrial Cooling, Fire Fighting, Drainage & Dewatering |
| Manufacturer | Komax Motors – www.komaxmotor.com |
