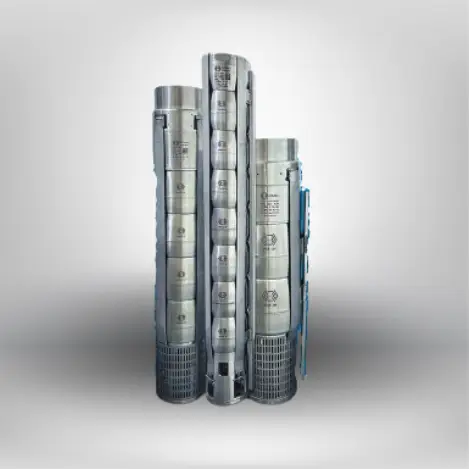

KOMAX Stainless Steel Bore Hole Submersible Pumps are engineered for powerful, efficient, and long-lasting water delivery in deep-well and industrial applications. Built with precision AISI 304/316 stainless steel components, they offer superior corrosion resistance and hydraulic efficiency. Designed for continuous operation, these pumps deliver exceptional flow and head performance with minimal maintenance. Ideal for agriculture, irrigation, municipal water supply, mining, and dewatering applications worldwide.
| Model | KOMAX KPS6 & KPS8 Series |
|---|---|
| Pump Type | Stainless Steel Bore Hole Submersible Pump |
| Pump Series | KPS6 (6″) & KPS8 (8″) |
| Frequency / Poles | 50 Hz / 2 Pole |
| Construction Material | Stainless Steel AISI 304 / 316 |
| Impeller Type | Fabricated Stainless Steel Impeller |
| Diffuser Type | Stainless Steel Diffuser, Laser Welded |
| Head Range | Up to 549 meters |
| Flow Capacity | Up to 132 m³/h |
| Power Range | Up to 93 kW |
| Suction / Delivery Size | 4”, 6”, 8” NEMA Standard |
| Direction of Rotation | Counter Clockwise (Facing Delivery Side) |
| Cooling System | Water Cooled – Submerged Operation |
| Max. Sand Content | 55 g/m³ |
| Minimum Submergence | 1 meter above pump suction |
| Operating Water Temperature | −5 °C to +50 °C |
| Pump Shaft Material | Stainless Steel AISI 304 |
| Bearing Type | Water-Lubricated Rubber Bearing |
| Check Valve | Built-in Stainless Steel Disc Type |
| Duty | Continuous (S1) |
| Applications | Deep Well, Agricultural Irrigation, Industrial Water Supply, Fire Fighting, Drainage, Dewatering |
| Manufacturer | KOMAX Motors – www.komaxmotor.com |
