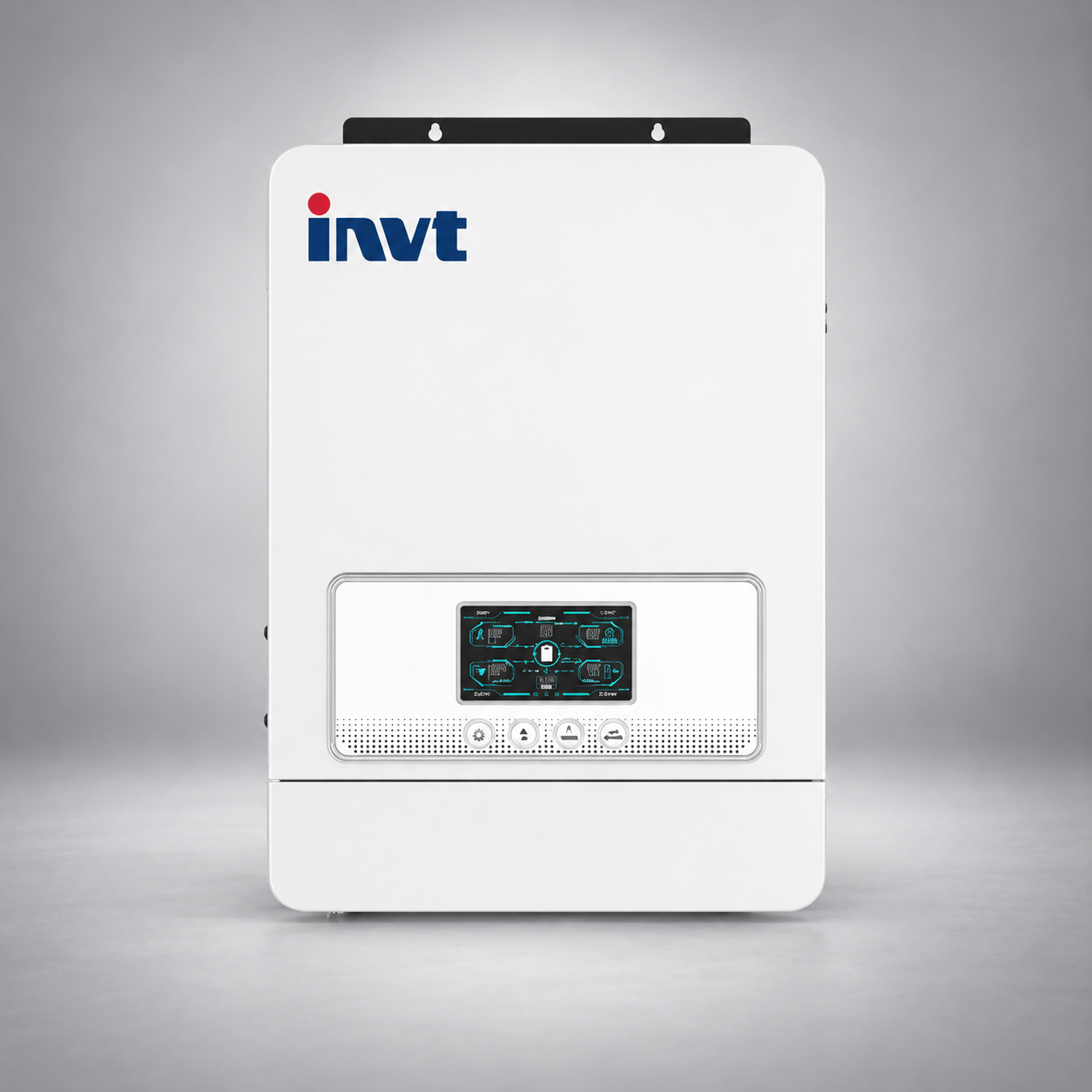

The INVT XN Off-Grid Inverter XN3024-PRO is a pure sine wave off-grid inverter designed for areas with unreliable or unavailable grid power. It is suitable for residential backup systems, remote locations, communication base stations, nomadic areas, islands, border posts and other applications requiring reliable independent power. The XN-PRO series combines inverter, solar charging and AC charging functions, providing a flexible solution for battery-based off-grid power systems.
| Specification | XN3024-PRO / XN6248-PRO / XN8248-PRO / XN10248-PRO |
|---|---|
| Product Type | Off-Grid Inverter |
| Rated Power | 3200VA / 3000W to 10200VA / 10200W |
| AC Output Voltage | 230Vac ±5% |
| Selectable Input Voltage Range | 170Vac–280Vac for personal computers / 90Vac–280Vac for home appliances |
| Frequency Range | 50Hz / 60Hz, Auto Sensing |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms for personal computers / 20ms for home appliances |
| Peak Efficiency | Up to 94% |
| Battery Nominal Voltage | 24Vdc / 48Vdc |
| Floating Charge Voltage | 27Vdc / 54Vdc |
| Overcharge Protection Voltage | 31Vdc / 61Vdc |
| Solar Charger Type | MPPT |
| MPPT Range | 55Vdc–450Vdc / 90Vdc–450Vdc |
| Maximum PV Array Open Circuit Voltage | 450Vdc / 500V |
| Maximum AC Charge Current | Up to 140A |
| Maximum Solar Charge Current | Up to 160A |
| Display | LCD |
| Communication Port | RS232 / RS485 |
| Safety / EMC | CE |
