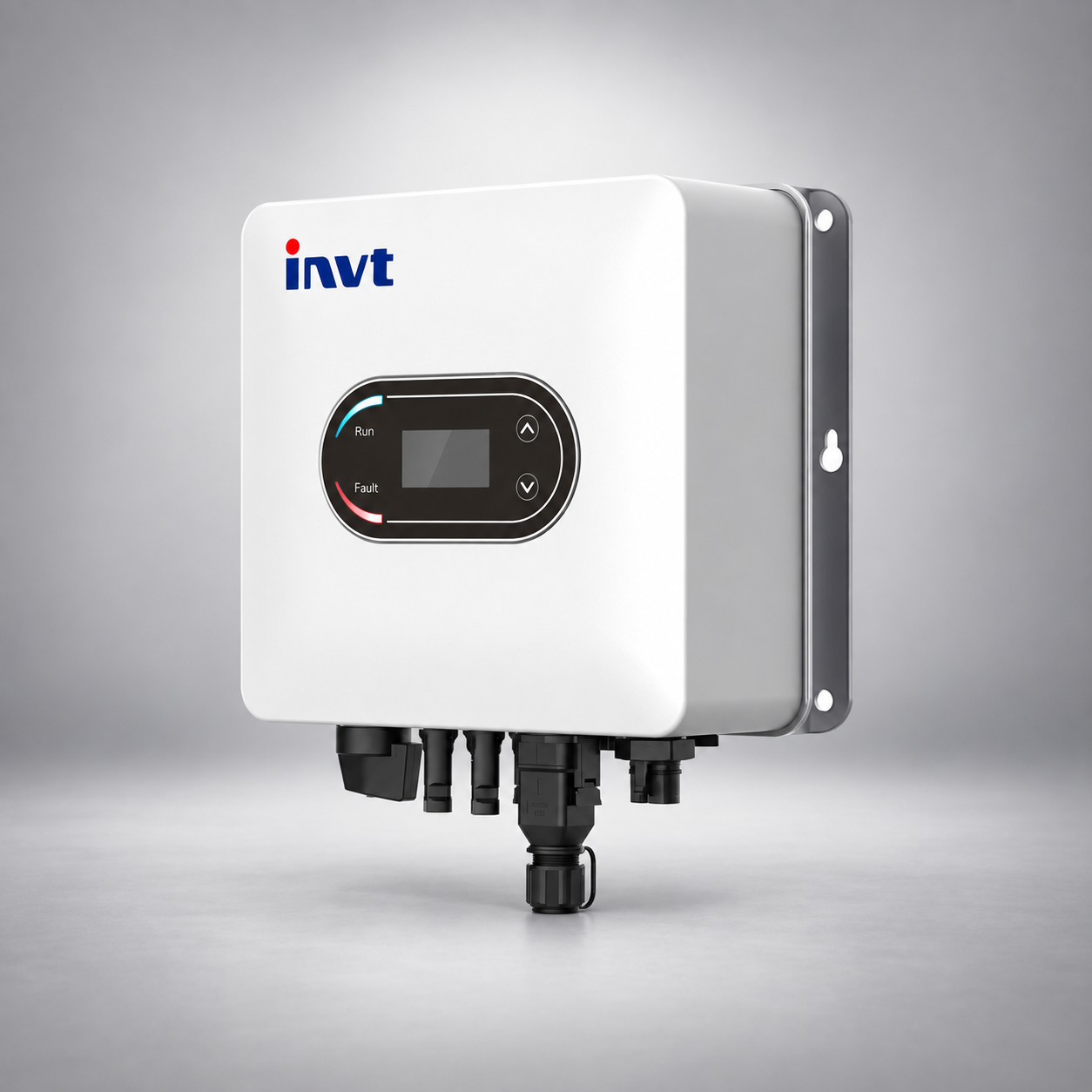

The INVT XG1-5KTL-S is a single-phase on-grid solar inverter developed by INVT Solar for residential solar systems. It features a compact and lightweight design for easy installation and maintenance, while providing high efficiency and reliable grid-connected solar power conversion. The XG1-5KTL-S series is available in multiple power ratings from 1kW to 5kW, making it suitable for different residential solar system requirements.
| Specification | XG1-5KTL-S Series |
|---|---|
| Product Type | Single-Phase On-Grid Solar Inverter |
| Model Range | XG1KTL-S to XG5KTL-S |
| Available Rated Output Power | 1kW – 5kW |
| Max. Input Voltage | 600V DC |
| Start Voltage | 60V |
| Rated Input Voltage | 360V |
| MPPT Voltage Range | 50V – 550V |
| Number of MPP Trackers | 1 |
| Strings per MPPT | 1 |
| Max. Current per MPPT | Up to 22.7A |
| Max. Short Circuit Current per MPPT | Up to 26A |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac |
| Power Factor | >0.99 (0.8 leading ~ 0.8 lagging) |
| THDi | <3% at rated power |
| Max. Efficiency | Up to 97.80% |
| European Efficiency | Up to 97.30% |
| MPPT Efficiency | 99.90% |
| Display | LCD / LED + APP |
| Communication | RS485 / WiFi / 4G |
| DC Switch | Optional |
| DC Reverse Polarity Protection | Yes |
| Anti-Islanding Protection | Yes |
| AC Short Circuit Protection | Yes |
| Residual Current Monitoring | Yes |
| Insulation Resistance Monitoring | Yes |
| Ground Fault Monitoring | Yes |
| Grid Monitoring | Yes |
| PV String Monitoring | Yes |
| Surge Protection | Yes |
| AFCI Protection | Optional |
| Standards | IEC/EN 62109-1/2, IEC/EN 61000-1/3, IEC 61727/62116, IEC 60068, IEC 61683, BIS, ABNT |
