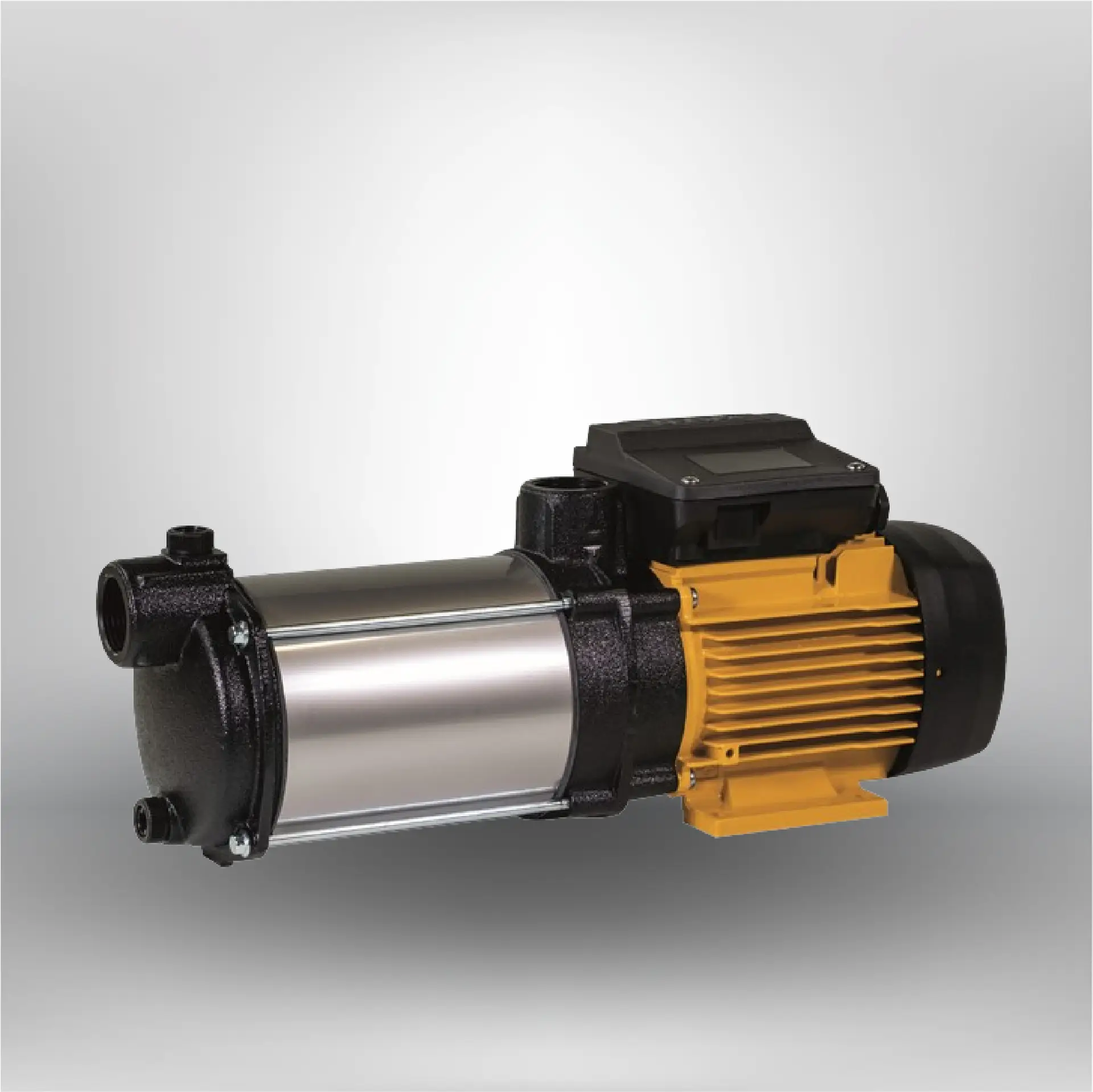

The Espa PRISMA 15 4M is a high-efficiency single-phase centrifugal pump designed for water supply, irrigation, and pressure boosting systems. Built with durable materials and an open impeller design, it ensures smooth operation even with slightly dirty water. Compact, reliable, and energy-efficient, it’s ideal for both residential and industrial use.
| Model | ESPA PRISMA 15 4M |
|---|---|
| Pump Type | Single-phase centrifugal pump |
| Flow Rate | Up to 90 l/min (5.4 m³/h) |
| Head Up To | 40–50 m (depending on setup) |
| Width | 43 cm |
| Height | 16 cm |
| Depth | 19 cm |
| Weight | 9.7 kg |
| Power Supply | 1~230V / 50Hz |
| Motor Power (P2) | 0.55 kW (0.74 HP) |
| Input Power (P1) | 0.80 kW |
| Current (Intensity) | 3.6 A |
| Capacitor | 12µF – 450V |
| Frequency | 50 Hz |
| Maximum Working Pressure | 6 bar |
| Pressure Range | 40–5 m |
| Liquid Temperature | Up to +40°C |
| Ambient Temperature | Up to +40°C |
| Ingress Protection | IP 65 |
| Packaging Volume | 0.013 m³ |
| Units per Pallet | 84 |
