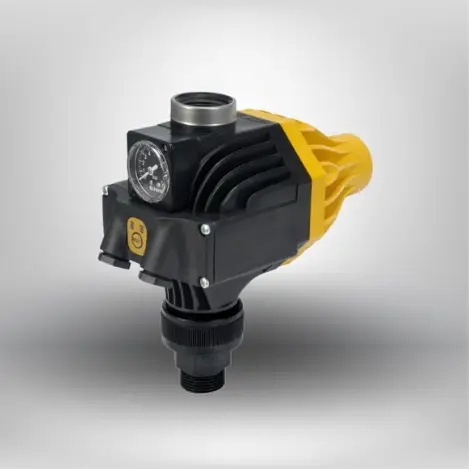

The ESPA Pressdrive 05 is an intelligent automatic control device for water pumps, ensuring efficient start and stop based on water demand. It features an adjustable starting pressure from 1.5 to 2.5 bar with an inline connection design for easy installation. Built with durable technopolymer and IP55 protection, it guarantees reliable performance in domestic and industrial water systems.
| Model | ESPA Pressdrive 05 |
|---|---|
| Function | Automatic Start & Stop Device for Water Pumps |
| Starting Pressure Range | 1.5 – 2.5 bar (Adjustable) |
| Maximum Working Pressure | 10 bar |
| Water Temperature | Max: 40°C |
| Protection Rating | IP55 |
| Reset Function | Automatic |
| Connection Type | In-Line Pump-Pipe Connection |
| Discharge Connection Type | Thread |
| Discharge Diameter | 1″ |
| Suction Connection Type | Thread (3-Piece Union) |
| Suction Diameter | 1″ |
| Check Valve | Included |
| Pressure Gauge | Included |
| Discharge Body Material | Technopolymer |
| Pump Body Material | Technopolymer |
| Suction Body Material | Technopolymer |
| O-Rings Material | NBR / EPDM |
