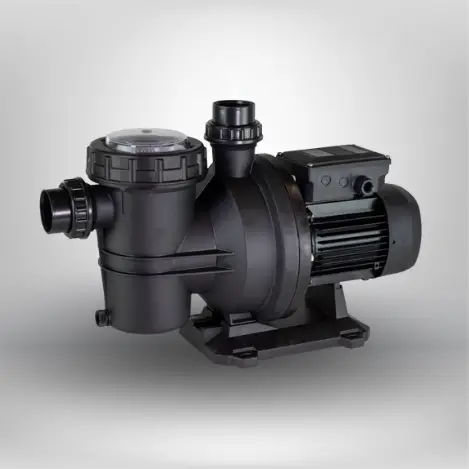

The ESPA Nox Series (75 / 100 / 150) Swimming Pool Pump is a powerful centrifugal single-stage pump designed for efficient water recirculation and filtration in medium-sized residential pools. With ultra-silent operation and self-priming up to 4 meters, it ensures consistent water flow and long-lasting performance. Built with durable technopolymer and stainless steel components, it delivers reliability, energy efficiency, and low maintenance.
| Model | ESPA Nox 75 / 100 / 150 |
|---|---|
| Pump Type | Centrifugal Single Stage |
| Application | Water Recirculation and Filtration for Residential Pools |
| Self-Priming Capacity | Up to 4 m |
| Operation | Silent |
| Electrical Isolation | F Class |
| Motor Type | Asynchronous |
| Protection Rating | IPX5 |
| Reset Function | Automatic |
| Service Factor | S1 |
| Input Power (P1) | 1.40 kW |
| Motor Power (P2) | 0.75 kW (1.01 HP) |
| Current (A) | 6.20 A |
| Maximum Water Temperature | 40°C |
| Maximum Suction Lift | 4 m |
| Seal Type | Mechanical Seal |
| Discharge Connection Type | Glue Union |
| Discharge Diameter | 50 mm |
| Suction Connection Type | Glue Union |
| Suction Diameter | 50 mm |
| Pump Shaft Material | Stainless Steel AISI 431 |
| Pump Body Material | Technopolymer |
| Impeller Material | Technopolymer |
| Diffuser Material | Technopolymer |
| Pre-Filter Material | Technopolymer |
| Motor Casing | Aluminium |
| Mechanical Seal Material | Aluminium-Graphite |
| O-Rings | NBR / EPDM |
