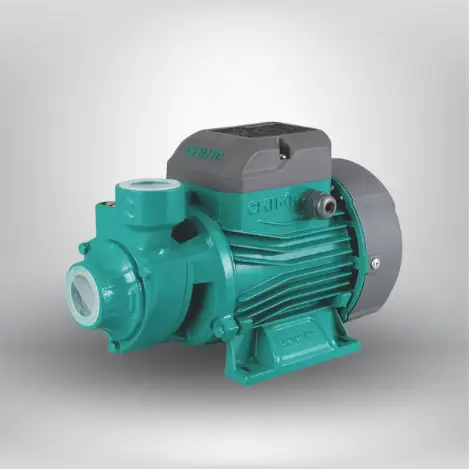

The CHIMP QB60 is a compact and efficient surface water pump designed for clean water transfer and household water pressure boosting. With a 0.37 kW (0.5 HP) copper-wound motor, it delivers up to 35 L/min flow rate and 35 m head, ensuring steady performance and energy efficiency. Its cast iron body, brass impeller, and stainless-steel shaft guarantee long-lasting durability for domestic and light industrial applications.
| Model | CHIMP QB60 |
|---|---|
| Power | 0.37 kW (0.5 HP) |
| Maximum Flow Rate | 35 L/min |
| Maximum Head | 35 m |
| Maximum Suction | 8 m |
| Inlet/Outlet Diameter | 1″ × 1″ |
| Pump Type | Surface Mono Block Pump |
| Pump Body Material | Cast Iron |
| Impeller Material | Brass |
| Rust-Free Inserts | Copper Inserts to Prevent Impeller Blockage |
| Max Liquid Temperature | 35°C / 60°C |
| Motor Type | 100% Copper Winding |
| Shaft Material | Stainless Steel / 45# Steel |
| Insulation Class | B / F |
| Protection Class | IPX4 |
| Cooling System | External Ventilation |
| Gross Weight | 5.3 kg |
| Packing Dimension | 265 × 130 × 160 mm |
| Applications | Domestic Water Supply, Garden Irrigation, Pressure Boosting |
