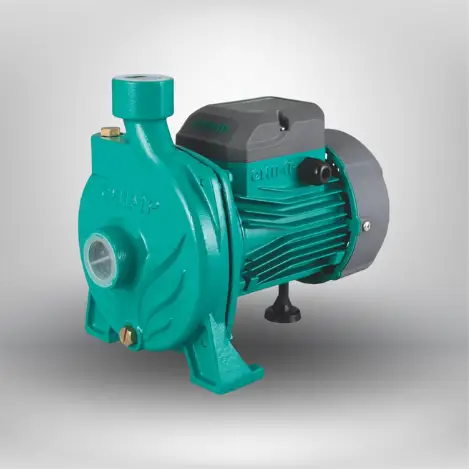

The CHIMP CPM-200 is a powerful and efficient centrifugal surface water pump built for high-performance water transfer and pressure boosting. Equipped with a 1.5 kW (2.0 HP) motor, it delivers up to 140 L/min flow rate and 40 m head, making it ideal for industrial use, irrigation, and building water systems. Its cast iron construction and brass/stainless-steel impeller ensure exceptional durability and reliable long-term operation.
| Model | CHIMP CPM-200 |
|---|---|
| Power | 1.5 kW (2.0 HP) |
| Maximum Flow Rate | 140 L/min |
| Maximum Head | 40 m |
| Maximum Suction | 8 m |
| Inlet/Outlet Diameter | 1″ × 1″ |
| Pump Type | Centrifugal Surface Water Pump |
| Pump Body Material | Cast Iron |
| Impeller Material | Stainless Steel / Brass |
| Max Liquid Temperature | +40 °C |
| Motor Type | Copper Winding |
| Shaft Material | Stainless Steel / 45# Steel |
| Insulation Class | B / F |
| Protection Class | IPX4 |
| Cooling System | External Ventilation |
| Gross Weight | 23 kg |
| Packing Dimension | 400 × 240 × 310 mm |
| Applications | Industrial Water Transfer, Agricultural Irrigation, Pressure Boosting, HVAC & Fire Systems |
