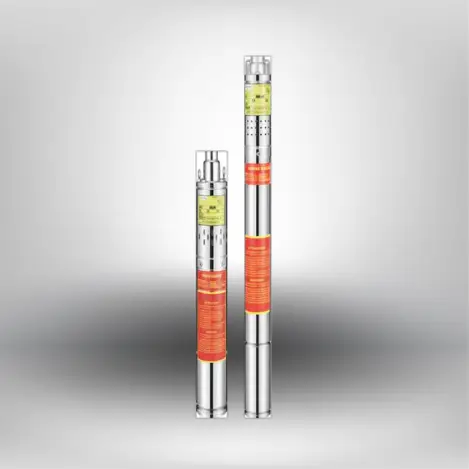

The CHIMP 2QGD/3QGD Deep Well Submersible Pump delivers reliable water supply for homes, farms, and gardens. Built for deep wells and reservoirs, it ensures powerful performance with high lift and efficiency. Ideal for domestic, industrial, and irrigation use. Durable copper motor and stainless-steel body for long-lasting operation.
| Model | CHIMP 2QGD / 3QGD Deep Well Submersible Pump |
|---|---|
| Pump Name | 2QGD / 3QGD Series |
| Well Diameter | 2″ / 3″ |
| Applications | Domestic, Industrial, Garden, Irrigation |
| Fluid Temperature (Max) | +35°C |
| Max Sand Content | 0.25% |
| Max Immersion Depth | 100 m |
| Minimum Well Diameter | 2” / 3” |
| Motor Type | Rewindable or Fully Sealed Submersible |
| Motor Voltage (Single Phase) | 220V–240V / 50Hz |
| Motor Voltage (Three Phase) | 380V–415V / 50Hz |
| Motor Power Range | 0.25 – 0.75 kW |
| Flow Rate Range | 0.2 – 2.0 m³/h |
| Max Head (Lift) | 48 – 103 m |
| Outlet Size | 0.5” to 1” |
| Body Material | Stainless Steel |
| Cooling System | Water Cooled |
| Optional Features | Special mechanical seal, 60Hz version |
| Standards | NEMA Dimension Standards |
